蒸汽一体化烫台

产品描述

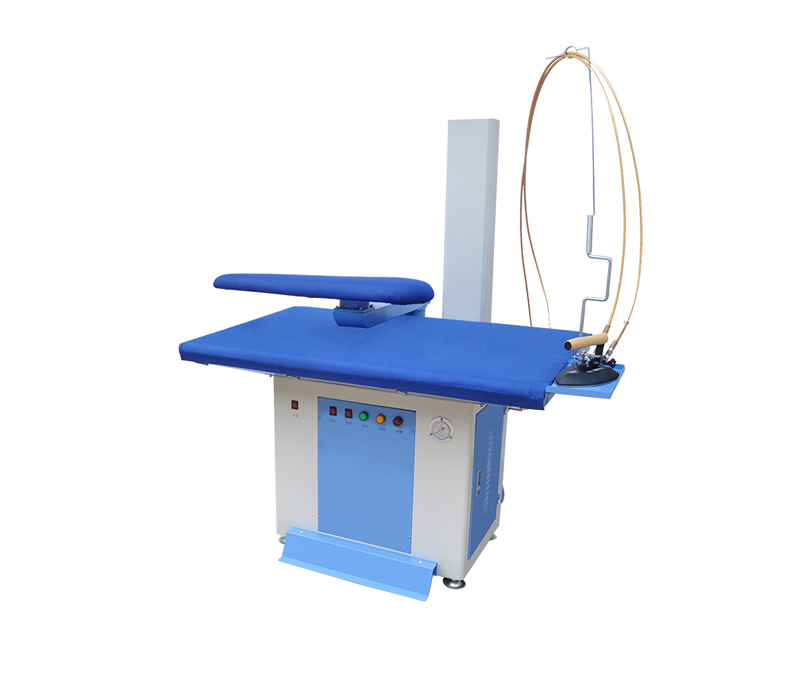

Vacuum ironing table inbuilt with steam generator

Energy saving  YL-128A

Normal type  YL-128B



                                                                                 Technical Specification
Model Energy saving  YL-128A Normal type  YL-128B
Voltage&Frequency1PH AC220V/50Hz 0.8KW 3PH AC380V/50Hz  0.75KW
Furnace Heating pipe power 5kw
Water Pump Power0.1Kw1.1Kw
Total power5.9KW/5.85KW6.9KW/6.85KW
Water tank capacity16L
Steam pressure0.4 Mpa
Steam output consumption7kg/h
Table heating Steam heating(Fixed temperature:80-100℃)
Buck heaterOption
Upward chimney
Iron hanger
Table size1500*780mm  1200*780mm/Customized is available



Feature

  • Integrated design, one table with one steam iron, automatically control adding water and heating, Suitable for different scale garment factories

  • Inbuilt with steam furnace, short steam pipe and low heating loss, to keep steam temperature and dry. It solves the shortcomings of using traditional large boilers, long steam supply pipelines, high heating loss and wet steam

  • Energy-saving type advantages: The unique steam exhaust recycling structure ,makes fully use steam exhaust, which saves about 40% steam consumption compared with other same type products.

  • Solve the shortcomings of traditional steam exhaust directly returning to the water tank:

    1.Makes the water pump heating and shorten its life  2. The water vapor generated by the boiling water in the water tank will not only affect the working environment, but also make the clothes easily to getting moist and mold

  • Stainless steel furnace, steam without stains, to avoid making the clothes dirty

  • Without changing the heating pipe power, the external volume of the heating pipe is increased, the heat receiving area of the water inside the furnace is increased, so that the heating and heating temperature will be speed up, the steam volume is sufficient

  • Equipped with moving casters for conveniently moving


Type FeatureAverage hourly electricity consumptionNational patent product


Energy saving, environmental protection, high efficiency

Energy saving typeSteam Exhaust recycling using~3.8kw
Normal type
~6.2kw
