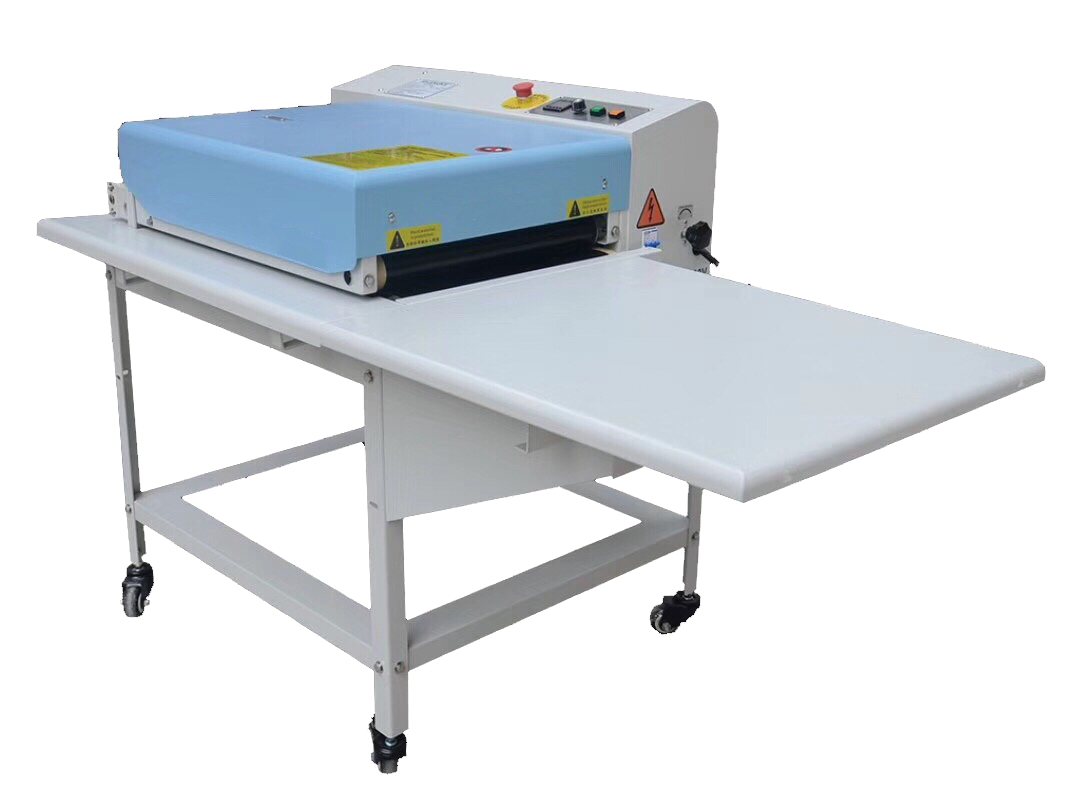

Fabric fusing press machine

产品描述

Fabric fusing press machine

Model:YL-520GS

Option:longer bottom belt(YL-450GSL、YL-520GSL)



                                    Technical Specification
ModelYL-520GS
Power1P 220V50-60HZ
Motor power0.06kw
Heating power4.2kw
Pressurization methodSpring pressurization
Max. pressure1.5kg/c㎡
TemperatureNormal temperature-230℃
Fusing width520mm
Fusing time10-34 sec
Strip-off deviceRotary Scraper
Machine dimension170*98*36cm
Package size112*102*70cm
N.W./G.W.170/200kgs



Feature

  • Side-open style: Fit for the bigger fabrics and various sizes

  • Equipped with the super linear guide belt to prevent the belt from warping, and extend the duration of the belt

  • Equipped with the special-designed pressure mechanism to ensure the maximum pressure strength up to 1.5kg/㎝²

  • Electronic thermostat and the special-made heating equipment minimize the temperature differences

  • Powerful ventilate fan to lower the temperature of electronic components from damaging



Suitable for

For the interlining and fabrics fusing

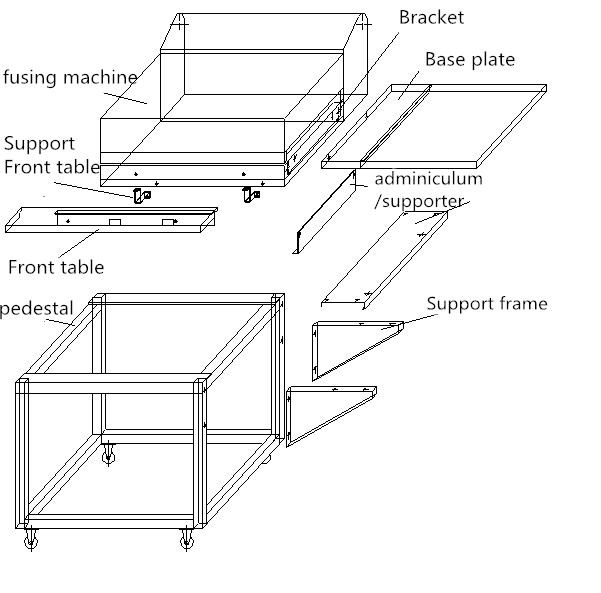

Structral diagram

Fabric fusing press machine
